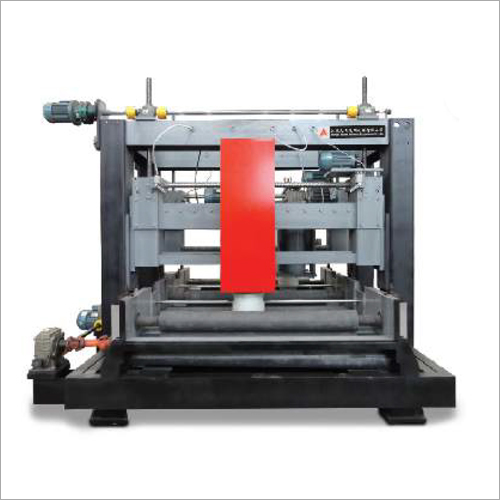

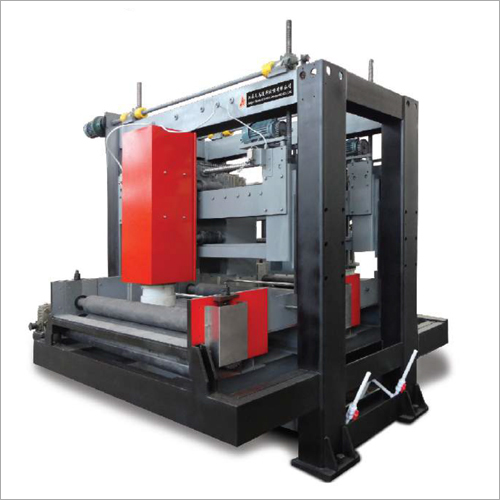

Non-Direction Vibration Machine

Product Details:

X

Product Description

Non-Direction Vibration Machine is unmatched in terms of design and performance. It is a heavy duty industrial machine designed for creating smooth and polished surface. The machine is equipped with the advanced machine parts and components, which are responsible for its durability and highly functional design. Non-Direction Vibration Machine can be easily installed in a production unit by following simple installation procedures. It requires low maintenance and ensures unmatched functionality uninterruptedly.

Technical parameters:

Production Capacity:

100 Sets/Year

Transport Package:

as Per The Sea Transporting Requirement

Payment Terms:

L/C, T/T

Type:

Surface Grinding Machine

Processing Object:

Stainless Steel Sheets or Coils

Controlling Mode:

Artificial

Automatic Grade:

Automatic

Precision:

High Precision

Specification:

as the customers requirements

Main parameter

Thickness of workpiece

0.5~3.0mm

Width of workpiece

1219mm

Length of workpiece

≥1000mm

Diameter of grinding head

200mm

Transmitting speed

0.1—0.3m/min

Total power

about 30KW Of which:Oscillation motor 1.1KWX4=4.4KW

Elevate motor

1.1KWX4=4.4KW

Grinding motor

2.2KWX4=8.8KW

Transmitting motor

3KW

Cleaning&drying unit

10KW

Dimension of main machine

10000×2538×2176mm



JIANGSU TIANMA UNIVERSAL EQUIPMENT CO. LTD.
